VINTAGE AIR GEN 5 SURE FIT COMPLETE KIT (WITHOUT FACTORY AIR/ 4-VENT)

1955-56 CHEVY PASSENGER
WITHOUT AIR CONDITIONING / 4-VENT

VINTAGE AIR GEN 5 SURE FIT COMPLETE KIT
4-VENT / WITHOUT AIR CONDITIONING

SOLD AS A SET

Application Note
With no molded center vent, this kit allows the use of 4 individual louver locations.

Application Summary
NOTES:
1. This kit requires an OEM, deluxe 4-lever control panel (Not included).
2. This kit is designed for the original firewall and dash.
3. If using a cross flow radiator, see Condenser Kit # 03455-VCC.
4. Some installations may require additional engine pulleys not included with kits.
You must provide pulleys, V-belts, heater hoses and refrigerant.
5. When retaining the original 265 or 283 V8 engine, it may be necessary to upgrade the harmonic
balancer and pulleys. You will also need to upgrade from the generator to an alternator.
6. SureFit™ systems may interfere with some OEM radios or in-dash speakers.

Vintage Air's 5th generation SureFit climate control systems are the most powerful and technologically
advanced systems available today. They employ an exclusive, fully electronic microprocessor-controlled
system that eliminates cables or vacuum connections. Separate, state-of-the-art, high-density aluminum
heat exchangers pack the maximum possible performance and reliability within the confines of your dash.

Additional features include variable blower speed and dash/floor/defrost blend.

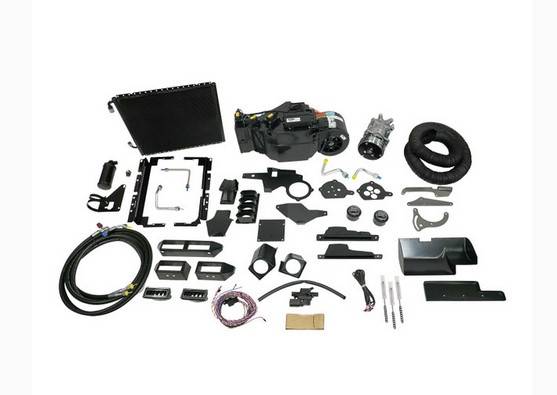

**This complete kit includes everything from the evaporator kit, plus all under-hood components such as the
compressor and bracket, condenser with brackets, preformed refrigerant lines, drier, fittings, hardware
and detailed installation instructions.

Engineered to cool your vehicle faster than ever
Improved diagnostics and advanced systematic fail safes
Multiple mounting options for an easier installation
Rubber well-nut mounting points for improved NVH isolation
Separate high-capacity A/C and heater coils with blend air door for rapid vent temperature adjustment
OEM block-type expansion valve
Injection molded case for optimal precision, strength and quality
Injection molded blend air doors with integral rubber seals
Removable access covers for coil service
Interchangeable defrost and floor heat plenums for increased mounting flexibility
Powder coated steel mounting brackets
Quiet high-performance blower
Uses your factory system controls with our patented Electronic Cable Converters
Flat steel firewall cover
