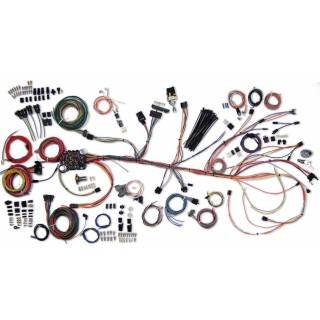

COMPLETE WIRING KIT

1964-67 CHEVELLE
1964-67 EL CAMINO
Note: El camino and Station Wagon models will require 500999 rear body parts kit which is available at an additional cost

COMPLETE WIRING KIT

SOLD AS SET


1. Replacement headlight switch with internal 30 amp circuit breaker included. Retention collar nut, adjustable length shaft, and custom knob are also included.

2. Standard turn signal flasher, hazard flasher, and horn relay mounted on fuse panel.

3. Fuse box designed to fit in original location. All required hardware supplied. New ATO fuse allows easy fuse and circuit breaker accessibility. Harness is laid out and formed to allow for nearly all aftermarket accessories such as; gauge packages, wiper systems, heat and air conditioning systems, etc.

4. Original switch connector bodies! (Exclusive to American Autowire)

5. Steering column connectors will plug directly into most aftermarket steering columns as well as 1969 and later GM columns which utilize stock GM turn signal switches The original column can also be wired by using the supplied mating connector and terminals.

6. Original Dash Panel instrument cluster connector.

7. Along with wiring for your original dome/interior lighting, we have included separate underdash light sockets.

8. Instrument Cluster wiring is designed with a cluster harness disconnect system for easy service and assembly. All original terminals, connectors and light sockets are also supplied for original cluster gauges. However, the best aspect of the disconnect system is that any gauge cluster package can be easily and neatly wired in. This includes automete, classic instruments, classic dash, dakota digital, stewart warner and vdo just to name a few.

9. New ignition switch, lock cylinder and keys are included with indexed connector.

10. Rear body harness assembly is designed to plug into the main harness in the original connector bodies. Flexibility in harness design allows for original or custom routing. Rear body wiring includes backup light wires and mating connectors for backup light leads. License plate lead, connectors and terminals included. Fuel tank sender wire and terminal included.

11. You'l find all the original style light socket pigtails packed into every aspect of this system making it the most complete system of its type in the industry

12. New floor dimmer switch is provided. Wire length and connection accommodate original floor mount dimmer switch.

13. GM bulkhead connector for the engine and front light wiring is included and ready for installation.

14. Engine wiring includes connectors for original points type as well as HEI distributors. Power and tach connectors supplied for GM HEI distributors. Alternator connectors are supplied for GM "SI" series alternator adapter is available separately.

14. Front lighting includes extra long leads for special routing when custom under hood appearance is desired. All headlight, park light and directional light connectors and terminals are provided, as well as a switched trigger wire for electric fan relay (usually recommended with AC)
