IDLER ARM ASSEMBLY

1970-81 CAMARO
1975-79 NOVA
1975-79 BUICK SKYLARK
1970-81 PONTIAC FIREBIRD & TRANS AM
1971 PONTIAC GTO

IDLER ARM ASSEMBLY

SOLD AS EACH

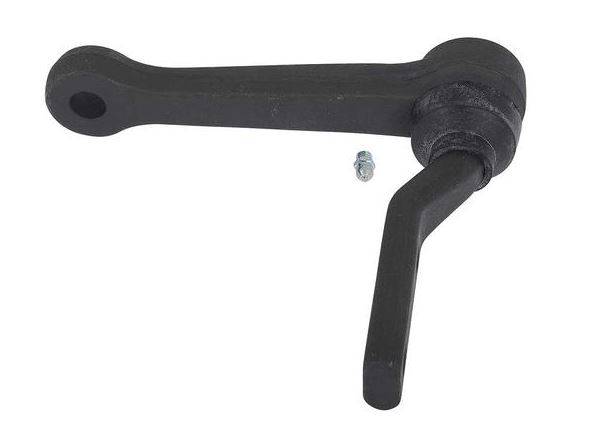

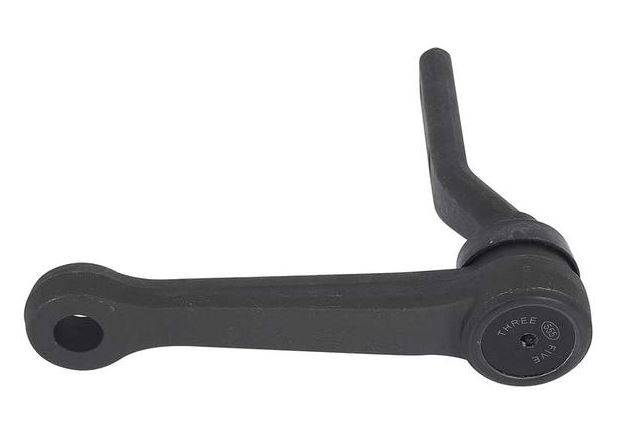

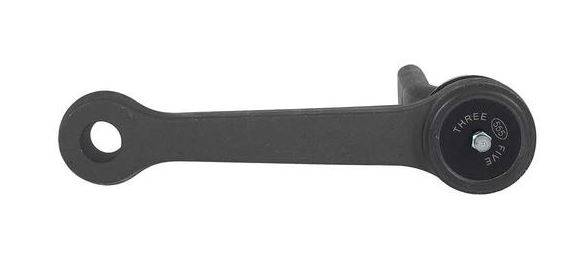

This pivoting support for the steering linkage appears on older recirculating ball-type steering
systems (pre-rack & pinion) and functions like the pitman arm in a rack and pinion system.
This cast-iron steering arm features two holes for mounting to the frame
a rubber boot on the mounting section of the idler arm
and features an eyelet or opening on the end that attaches to the center drag link.

INCLUDES
(1) Arm
(1) Bracket
(1) Dust Boot
(1) Castle Nut
(1) Cotter Pin
(1) Grease Fitting

Product Specifications

# Bracket Holes: 2
Length Center to Center: 5.931
Hardware Included: No
Ball Design: No
Arm Type: Bent
Arm Fixture: Hole
Bracket Fixture: Stud
Arm Fixture Stud Thread/Hole Inside Diameter: 0.557
Greasable: Yes
